Item NO.:
TDC-XC14Payment:
Paypal, Bank TransferProduct Origin:
ChinaColor:

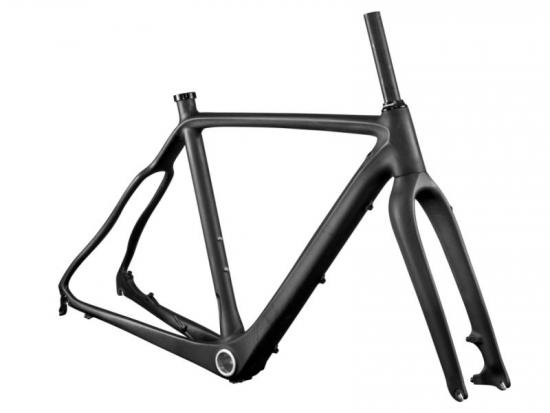

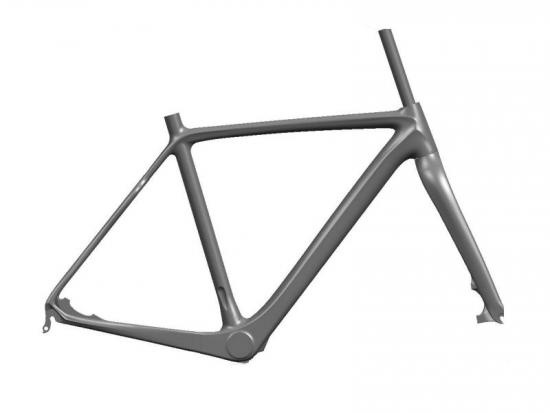

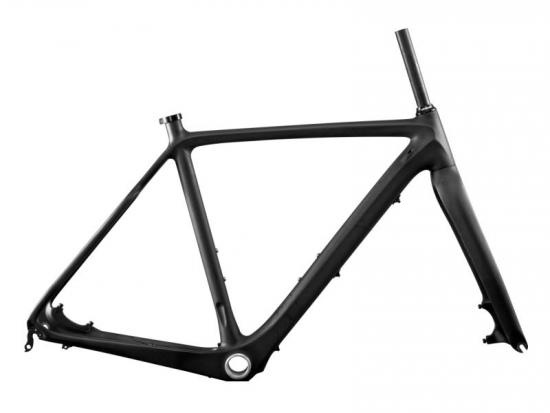

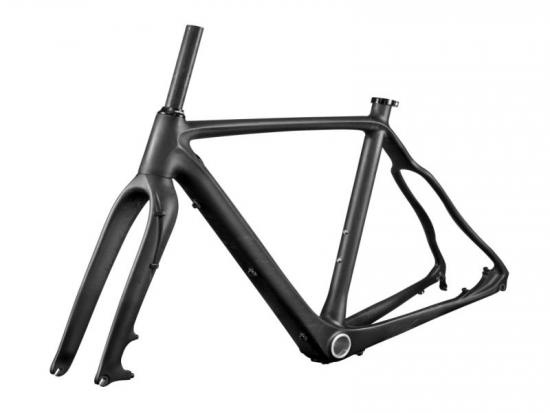

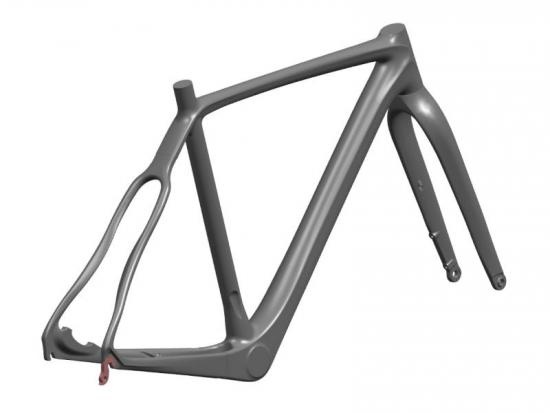

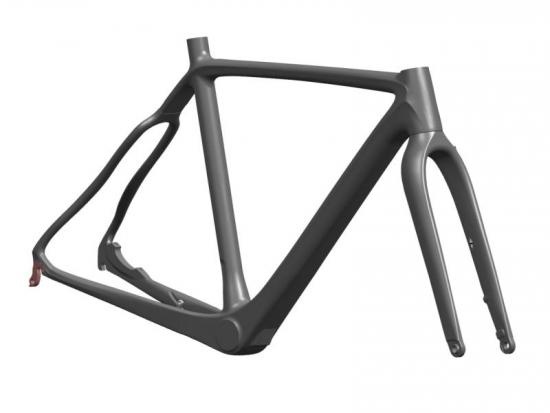

Raw Finish or Customized Painting AcceptableToray Carbon Gravel Frameset
Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

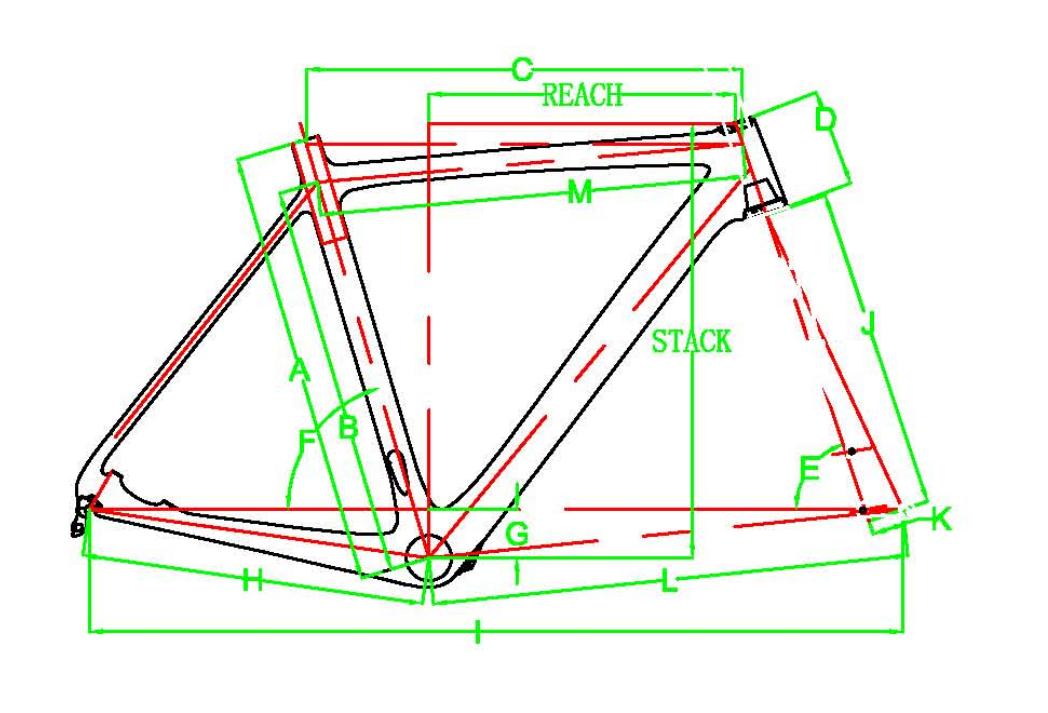

| Size | 525 | 540 | 560 | 580 |
| Stack | 520 | 539 | 560 | 578 |
| Reach | 376 | 380 | 394 | 403 |
| Head Tube Angle | 71.5 | 71.5 | 72 | 72 |
| Head Tube Length | 525 | 540 | 559 | 580 |
| Seat Tube Angle | 74 | 73.5 | 73.5 | 73 |
| Seat Tube Length | 525 | 540 | 560 | 580 |
| Top Tube Length | 470 | 486 | 505 | 525 |
| BB Drop | 60 | 60 | 60 | 60 |
| Rear To BB Center | 100 | 120 | 140 | 160 |
| Fork To BB Center | 425 | 425 | 425 | 425 |
| Fork Built Height | 400 | 400 | 400 | 400 |
| Fork Rake | 45 | 45 | 45 | 45 |
| Wheel Base | 998 | 1009 | 1024 | 1039 |

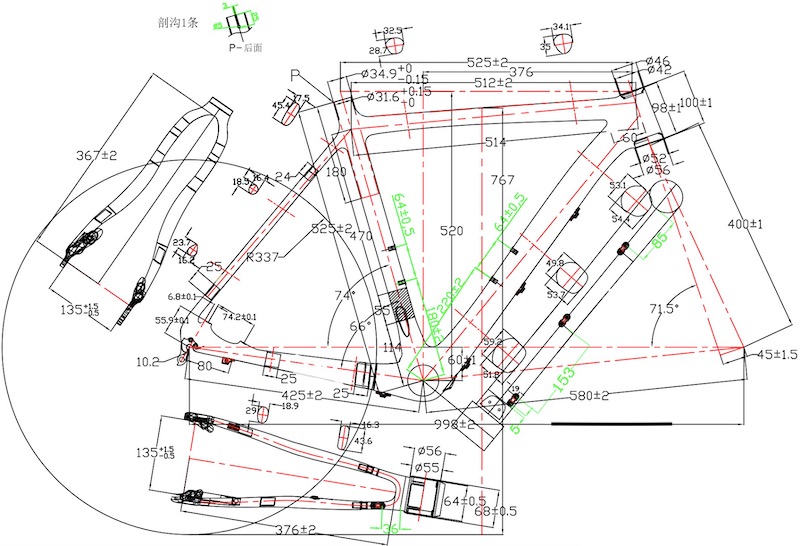

Technical drawings can help customer find the frame detail parameters and structure that they are interested.
TECHNOLOGY
|
Italy Design Team we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions. |
|
|
3D latex mandrel technology we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall. |
 |
Carbon Fiber Material Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame. Combining with stable resin system to make consistent quality and light weight frame. |
 |
Lab Test All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products. |
 |
2-Year Warranty We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed). Click Warranty to see more details in another page. |
Why choose us ?
-Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.
-Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services.
-More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.
FAQ:
Q1: Wonder if you accept small orders?
A1: Yes, we accept small trial orders. Besides, trial order's product quality is the same to massive production.
Q2: Can you send carbon gravel framesets samples to test?
A2: Sure, sample is welcomed, while the sample's fare and freight at your cost.
Q3: Can you do OEM/ODM for me?
A3: Yes, both is available, besides, we have design department, if you have problems, we can help solve them.
Q4: How can I place the order?
A4: Firstly, confirm PI and pay deposit,then we will arrange sample and massive production. After finished production, plz pay the balance before shipment. Then delivery the goods.
Q5: What is the carbon frames feeling during riding?
A5: Accelerating on a carbon bike frames feels much snappier due to both the torsional stiffness and lighter weight. Although minimal, that snappiness will affect your performance and psyche, leading to faster times and more confidence.
Q6: Whether the gravel bike frame will show in eurobike show 2024?
A6: Yes,we would show road bike frame, gravel frame and MTB bike frame.
-Type: Gravel 700C Disc -Size: 450/470/490/510/530/550/570 (C to T) -Head Tube: Tapered 1-1/8’’ - 1-1/2”
-Type: 700C*45C Gravel Bike (Disc brake) -Size: 500mm/530mm/560mm/590mm -Head Tube: Tapered 1-1/8’’ ,1-1/2” (Headset:FSA NO 42-ACB) -Bottom Bracket: BB86 Press Fit
Type: Fully-Integrated Disc brake Gravel Bike Frameset Size: 510mm available Head Tube: FSA No.55 ACR 1.5" Fully-Integrated Bottom Bracket: Press Fit BB86.5*41MM Seat Post: 30.8mm
-Type: 700C*45C Gravel Bike (Disc brake) -Size: 510mm available -Head Tube: 1-1/2”(Headset:FSA NO.55) -Bottom Bracket: T47 -Seat Post: 27.2mm
Type: 700C*45C Gravel Bike (Disc brake) Size: 510mm available Head Tube: 1-1/2”(Headset:FSA NO.55) Bottom Bracket: T47 Seat Post: 27.2mm
Super Light Weight Carbon Fiber Wave Rims Type：tubeless, clincher Material：Carbon Weight:440g Hubs option:DT CHOOSEN BITEX and others Spoke holes:24 Max Spoke Tension:300KGF Brake option:Disc or Rim brake Outer Width: 25 Inner Width:18 Depth:45-40 ERD:550 Tire Type: 25-28-30-32 Max Weight Limit:130kg Max Tire Pressure:tubeless ：100 ；clincher:130 Tire Size(Recommended):25-28-30-32 Why choose us ? -Tour De Cycling has more than 17 years of production experience in carbon rims developing and manufacturing. -Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. -More than 100 kinds of rims products have been developed and produced, and more than 95% of them are exported overseas. FAQ: Q1:Do you provide OEM service? A1:Yes, we have been focusing on carbon fiber wheel production, research and development, design, OEM for more than ten years, from carbon fiber material production, carbon fiber wheel production, frame production, accessory production, and weaving wheels. More than 100 employees. At the same time, we also invest a lot of time and research and development expenses every year to develop hubs with more than 10 hub factories, in order to make every part of the carbon fiber wheel set, not just the carbon fiber rim. So what you can get from our company is a complete set of carbon fiber wheels. No need to bother to find suppliers in every link. Q2: Can I get rims with custom spoke count? custom hole angle? A2: Yes, we are able to custom drill any spoke count, and most rims can have a custom hole angle. Please contact us, we will check it for you accordingly. Q3: What tyre pressures should I run? A3: The best tyre pressure for your bike depends on many factors: the rim width, the kind of bike, the kind of tyres, rider weight, road conditions and weather conditions. Please click this link to see "the correct tyre pressure for your bicycle tyres". Q4: How strong are your carbon rims? What happens if I break one? A4: Every piece our carbon rim has been strict tested before shipment, has the best impact strength. Because of this we offer 2 YEARS WARRANTY on all carbon rims. For specific details on how the warranty works, please reference our warranty policy page. Q5: What are your recommended spoke tensions? A5: We recommend 110-130kgf on all carbon rims / wheels. Q6: Are your clincher rims tubeless ready? A6: All yuan an clincher rims are tubeless ready. Q7：Do you offer custom rim mold (OEM)? TDC is a professional manufacturer of carbon rims and is dedicated to continuous improvement. We are able to assist you with development of your OE product as well as quality testing and manufacture, and offer competitive OEM prices. We pride ourselves on our honesty, quality and integrity. And the long lasting relationships we hold with our current clientele around the globe is testament to this. Mold cost: by quote, please contact us at: sales@tourdecycling.com. 8. Do you offer custom graphics/decal design? If you want to have a custom graphic, we can create and install your design on the rims. Custom graphics/decal are applied after the rim sanding process and then covered with matte or glossy clear coat. This makes the graphics/decal more durable, however they are not removable. For the custom graphics/decal, please email us the details. 9.Do you offer complete wheel building? Yes, our goal is to provide extremely high quality carbon wheels and services through careful quality control and parts selection. 10. What methods of payment do you accept? We accept several methods of payment included wire transfer, Paypal, Visa, Mastercard and Western Union. Please contact us for the details.
Type: 700C E-ROAD FRAME Size Available: 470/500/530/550/580 Head Tube: 1-1/2"-1-1/2" Seat Post : Φ27.2
-Type: 24" MTB E-BIKE FRAME -Material: High modulus Toray T700 / T800 carbon fiber+basalt fibre -Size: 13" -Weight : 2100g
